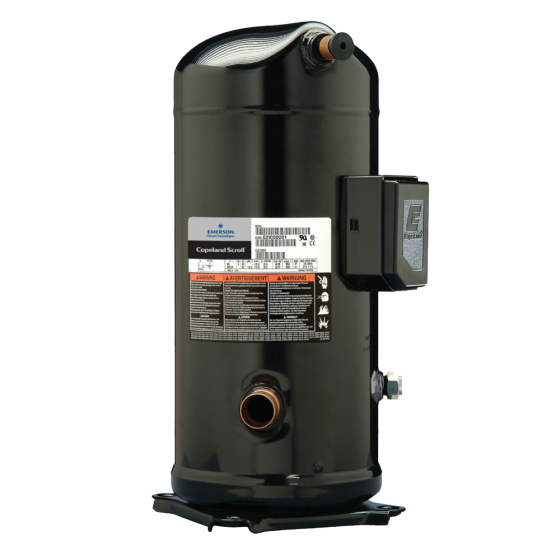

Copeland Hermetic Scroll Compressor R410A, 182,000BTU, 460Vac, Three Phase
Item
ZP182KCE-TED-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 182,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 42
• LRA: 173
• RLA: 30
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 5.52"
• Discharge Line Size: 7/8"
• Discharge Line Height: 20.45"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 30 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 161 to 200kBTU | Suction Line Height | 5.53" | Discharge Line Height | 20.46" | Discharge Line Size | 7/8" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 140 | Exterior Dimensions (D) (inches) | 18.000000 | Exterior Dimensions (W) (inches) | 26.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 140.000000 |
