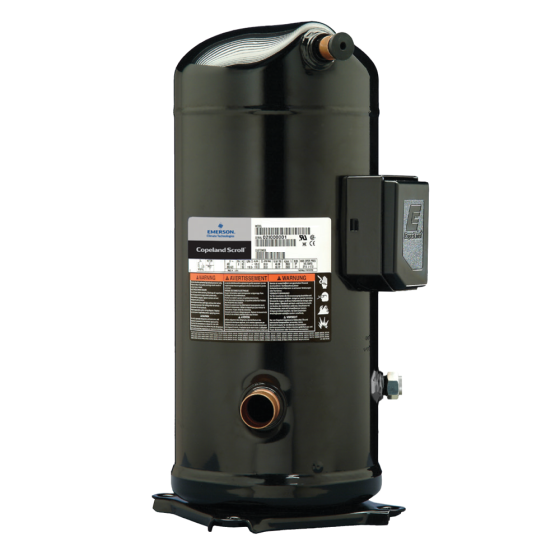

Copeland Hermetic Scroll Compressor R410A, 137,000BTU, 208/230Vac, Three Phase
Item
ZP137KCE-TF5-855
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 137,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 75
• LRA: 245
• RLA: 53.6
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 4.81"
• Discharge Line Size: 7/8"
• Discharge Line Height: 19.73"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 53.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 131 to 160kBTU | Suction Line Height | 4.81" | Discharge Line Height | 19.73" | Discharge Line Size | 7/8" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 125 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 28.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 125.000000 |
