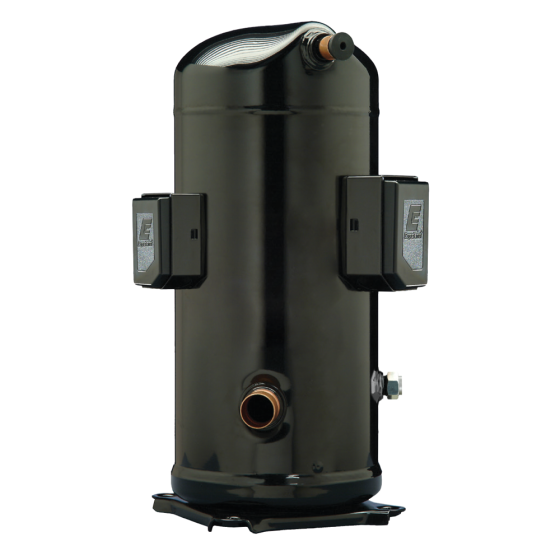

Copeland Hermetic Scroll Compressor R410A, 120,000BTU, 460Vac, Three Phase (Digital)
Item
ZPD120KCE-TFD-855
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 120,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 28
• LRA: 125
• RLA: 20
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 4.81"
• Discharge Line Size: 7/8"
• Discharge Line Height: 19.73"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 20 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 111 to 130kBTU | Oil | POE (Polyester) | Discharge Line Size | 7/8" | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 125 | Exterior Dimensions (D) (inches) | 18.000000 | Exterior Dimensions (W) (inches) | 28.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 125.000000 |
