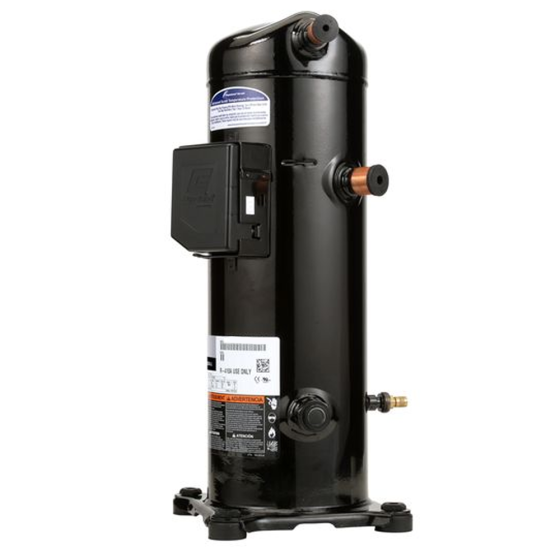

Copeland Hermetic Scroll Compressor R410A, 83,000BTU, 208/230Vac, Three Phase
Item
ZP83KCE-TF5-7M7
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 83,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 39
• LRA: 164
• RLA: 27.9
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.73"
• Discharge Line Size: 1/2"
• Discharge Line Height: 16.17"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 27.9 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 81 to 90kBTU | Oil | POE (Polyester) | Discharge Line Size | 1/2" | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 92 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 13.500000 | Exterior Dimensions (H) (inches) | 19.250000 | Shipping Weight (lbs) | 92.000000 |
