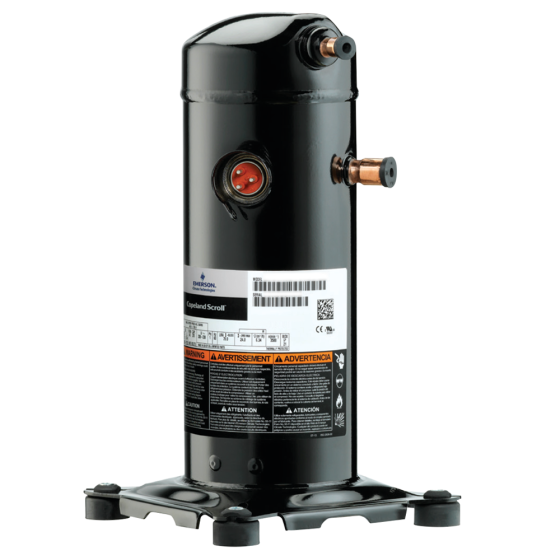

Copeland Hermetic Scroll Compressor R22, 25,000BTU, 265Vac, Single Phase
Item
ZR25K5E-PFJ-800
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 25,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 265Vac
• Single Phase
• Capacitor Rating: 35/440µF
• MCC: 17
• LRA: 63
• RLA: 12.1
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 9.97"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.13"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | Voltage | 265 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 21 to 25kBTU | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 64 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 25.000000 | Shipping Weight (lbs) | 64.000000 |
