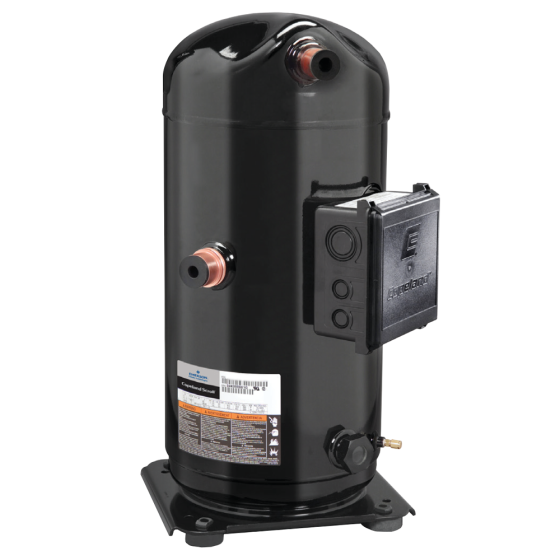

Copeland Hermetic Scroll Compressor R22, 160,000BTU, 460Vac, Three Phase
Item
ZR16M3E-TWD-922
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 160,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 38.1
• LRA: 158
• RLA: 27.2
• Hertz: 60
• Suction Line Size: 1-3/8"
• Discharge Line Size: 7/8"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 27.2 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 131 to 160kBTU | Oil | POE (Polyester) | Discharge Line Size | 7/8" | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 100 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 29.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 100.000000 |
