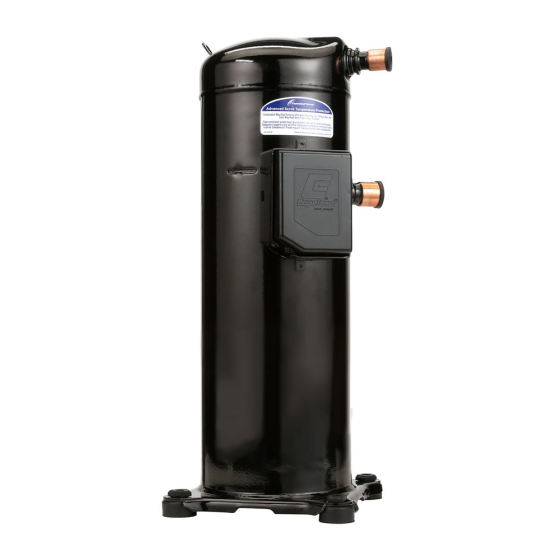

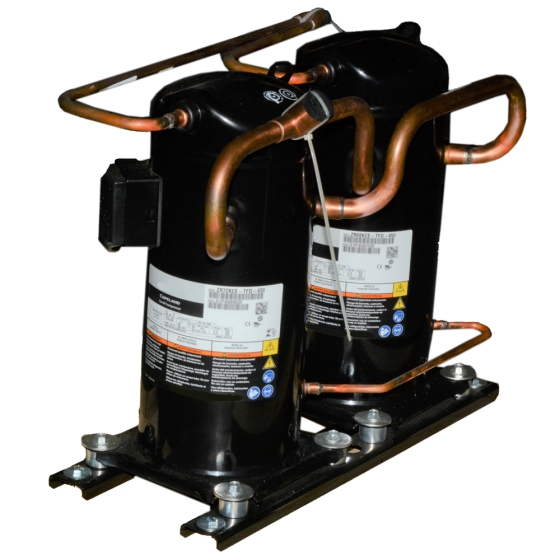

Copeland Hermetic Scroll Compressor R22, 141,000BTU, 460Vac, Three Phase (Uneven Tandem)
Item
ZRU140KCE-TFD-980
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 140,000
• Refrigerant: R22
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• Hertz: 60
• Suction Line Size: 1-1/8"
• Discharge Line Size: 3/4"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 18.8 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 131 to 160kBTU | Oil | POE (Polyester) | Discharge Line Size | 3/4" | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 27.5 | Exterior Dimensions (D) (inches) | 42.500000 | Exterior Dimensions (W) (inches) | 225.000000 | Exterior Dimensions (H) (inches) | 32.000000 | Shipping Weight (lbs) | 27.500000 |
