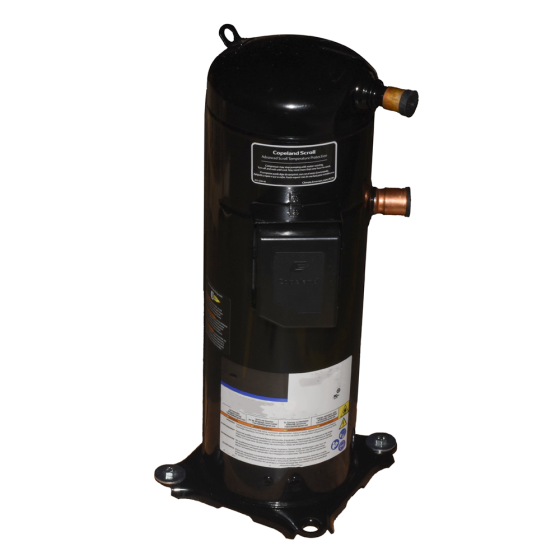

Copeland Hermetic Scroll Compressor R454B, 20,000BTU, 208/230Vac, Single Phase

Item

YA20K1E-PFV-8A1

FEATURES

• Compressor Type: Scroll

• BTU Rating: 20,000

• Refrigerant: R454B

• Connection Type: Molded Plug (Not Included)

• Oil: POE (Polyol Ester)

• Voltage: 208/230Vac

• Single Phase

• Capacitor Rating: 35/370µF

• MCC: 16

• LRA: 60.2

• RLA: 10.3

• Hertz: 60

• Suction Line Size: 3/4"

• Discharge Line Size: 1/2"

• Weight (lb): 47.4

Electrical
Phase	1
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	50
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	14.000000
Exterior Dimensions (H) (inches)	17.000000
Shipping Weight (lbs)	50.000000
