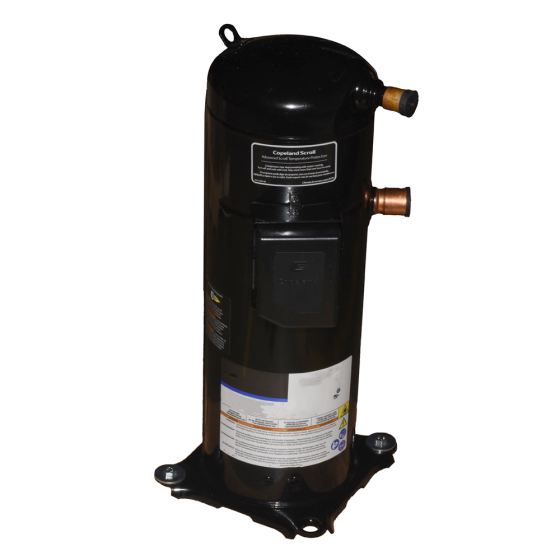

Copeland Hermetic Scroll Compressor R454B, 104,000BTU, 208/230Vac, Three Phase

Item

YA104K1E-TF5-8C3

FEATURES

• Compressor Type: Scroll

• BTU Rating: 104,000

• Refrigerant: R454B

• Connection Type: Molded Plug (Not Included)

• Oil: POE (Polyol Ester)

• Voltage: 208/230Vac

• Three Phase

• Capacitor Rating: Not Required (Compressor is Three Phase)

• MCC: 44.5

• LRA: 215

• RLA: 28.5

• Hertz: 60

• Suction Line Size: 1 1/8"

• Discharge Line Size: 7/8"

• Weight: 113.5

Electrical
Phase	3
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	120
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	14.000000
Exterior Dimensions (H) (inches)	24.000000
Shipping Weight (lbs)	120.000000
