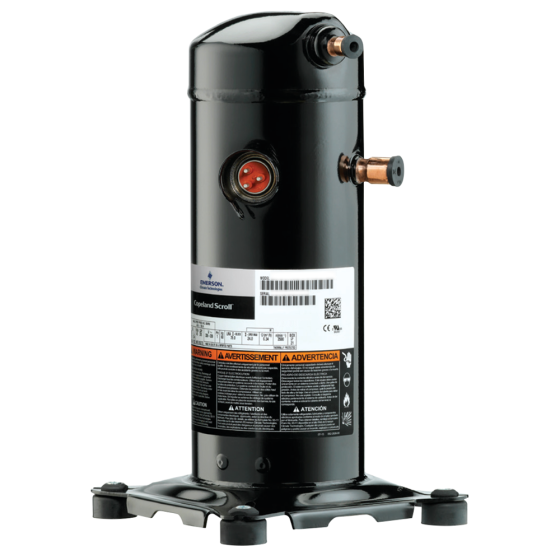

Copeland Hermetic Scroll Compressor R410A, 38,000BTU, 208/230Vac, Three Phase

Item

ZP38K7E-TF5-830

FEATURES

• Compressor Type: Scroll

• BTU Rating: 38,000

• Refrigerant: R410A

• Connection Type: Molded Plug (Not Included)

• Oil: POE (Polyol Ester)

• Voltage: 208/230Vac

• Three Phase

• MCC: 20

• LRA: 120.4

• RLA: 14.3

• Hertz: 60

• Suction Line Size: 7/8"

• Suction Line Height: 11.6"

• Discharge Line Size: 1/2"

• Discharge Line Height: 15.5”

Electrical
Phase	3
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	65
Exterior Dimensions (D) (inches)	11.000000
Exterior Dimensions (W) (inches)	11.000000
Exterior Dimensions (H) (inches)	18.000000
Shipping Weight (lbs)	65.000000
