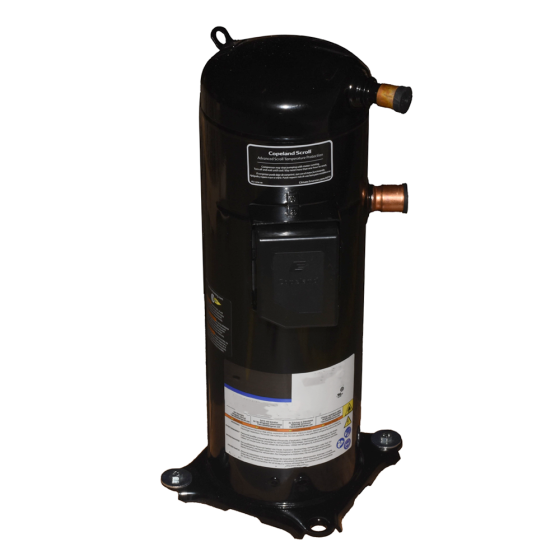

Copeland Hermetic Scroll Compressor R22, 72,000BTU, 575Vac, Three Phase

Item

ZR72KCE-TFE-950

FEATURES

• Compressor Type: Scroll

• BTU Rating: 72,000

• Refrigerant: R22

• Connection Type: Screw Terminals

• Oil: POE (Polyol Ester)

• Voltage: 575Vac

• Three Phase

• Capacitor Rating: Not Required (Compressor is Three Phase)

• MCC: 11.5

• LRA: 54

• RLA: 7.4

• Hertz: 60

• Suction Line Size: 7/8"

• Discharge Line Size: 1/2"

• Weight (lb): 86

Electrical
Phase	3
Voltage	575

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	87
Exterior Dimensions (D) (inches)	11.000000
Exterior Dimensions (W) (inches)	11.000000
Exterior Dimensions (H) (inches)	18.000000
Shipping Weight (lbs)	87.000000
