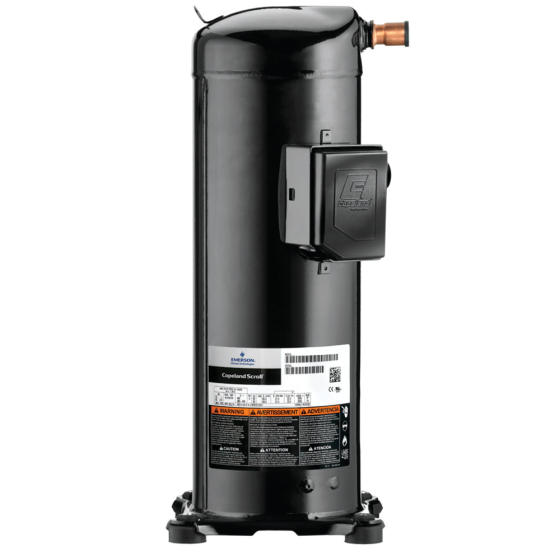

Copeland Hermetic Scroll Compressor R22, 57,000BTU, 208/230Vac, Single Phase

Item

ZR57K3E-PFV-930

FEATURES

• Compressor Type: Scroll

• BTU Rating: 57,000

• Refrigerant: R22

• Connection Type: Screw Terminals

• Oil: POE (Polyol Ester)

• Voltage: 208/230Vac

• Single Phase

• Capacitor Rating: 80µF

• MCC: 45

• LRA: 148

• RLA: 32.1

• Hertz: 60

• Suction Line Size: 7/8"

• Suction Line Height: 11.6"

• Discharge Line Size: 1/2"

• Discharge Line Height: 16.1"

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	90
Exterior Dimensions (D) (inches)	10.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	18.000000
Shipping Weight (lbs)	90.000000
