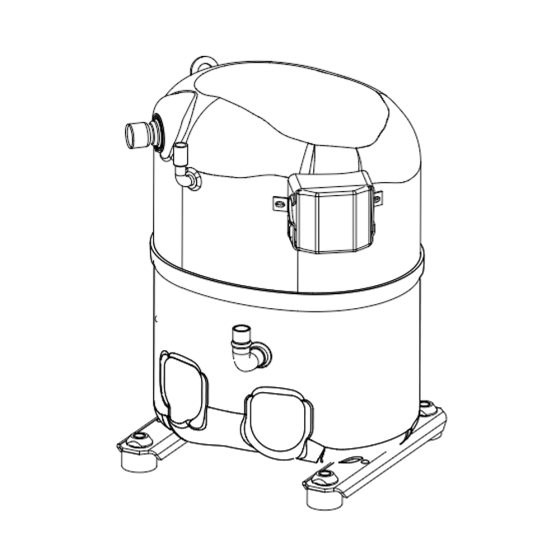

Copeland Hermetic Reciprocating Compressor R22, 24,000BTU, 208/230Vac, Single Phase

Item

CR24K6E-PFV-925

FEATURES

• Compressor Type: Reciprocating

• BTU Rating: 24,000

• Refrigerant: R22

• Connection Type: Terminals

• Oil: POE (Polyol Ester)

• Voltage: 208/230Vac

• Single Phase

• Capacitor Rating: 35/370µF

• MCC: 17.4

• LRA: 61

• RLA: 12.4

• Hertz: 60

• Suction Line Size: 3/4"

• Suction Line Height: 11.51"

• Discharge Line Size: 1/2"

• Discharge Line Height: 5.86"

Electrical
Phase	1
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	65
Exterior Dimensions (D) (inches)	8.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	15.000000
Shipping Weight (lbs)	65.000000
