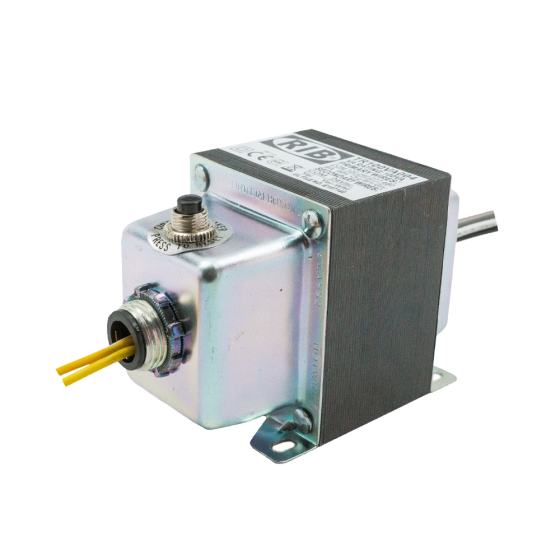

Enclosed AC Power Supply 120/240/277/480Vac Primary, 24Vac Secondary, 100Va
Item
TR100VA004
FEATURES
The TR100VA004 Transformer offers efficient power management in a range of electrical applications. It boasts a 96VA capacity and is designed to handle many input voltages, converting them to 24 VAC with exceptional reliability. The high capacity makes it adaptable to different power systems. Safety is another key feature in our design, as the TR100VA004 has a built-in circuit breaker to protect against overloads.
24 VAC ConversionConverts from 480/277/240/120 VAC to 24 VAC.
Integrated Circuit Breaker
Offers added protection and ensures reliable operation.
96VA Capacity
Large-capacity transformer can be adapted to numerous use cases.
SPECIFICATIONS
• VA Rating: 96• Frequency: 50/60 Hz
• Mounting: Foot & Dual Threaded Hubs
• Over Current Protection: Circuit Breaker
• Operating Temperature: -30 to 140° F
• Dimensions: 4.173” x 2.523” x 3.041” (w/ .500” NPT Hubs)
• Wire Length: 8.0” Typical w/ .5” Strip
• MTBF: 100,000 Hours @ 77° F
• Construction: Split-Bobbin
• Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Specification | |
|---|---|
| Va Rating | 100Va | Secondary Voltage | 24Vac | Primary Voltage | 120/208/240/277/480Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
