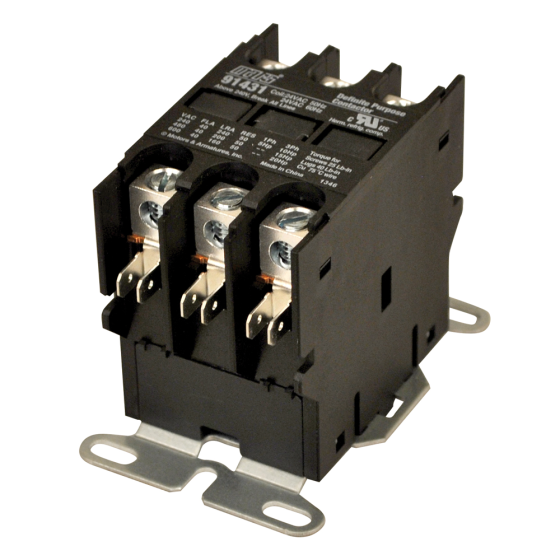

Contactor 3 Pole, 24V Coil, 40FLA, 50RA, Lug
Item
91431
FEATURES & BENEFITS
• Used in air conditioning, heating and refrigeration
• Box lug terminations speed installation
• Universal mounting base
• Contact cover and enclosed coils reduce dirt and insect intrusion
• Compact design
• Silver-Cadmium contacts
• Meets ARI 780/790 requirements
• cULus Approval
• 1,000,000 Cycle mechanical life
• Contactor Type: Definite Purpose
• FLA Inductive Amps: 40
• FLA Resistive Amps: 50
• Number of Poles: 3
• Coil Voltage: 24
• Coil Hz: 50/60
• Lug or Screw Terminal: Box Lug
• Standards: UL
• Number of QC Terminals Per Pole: 2
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
