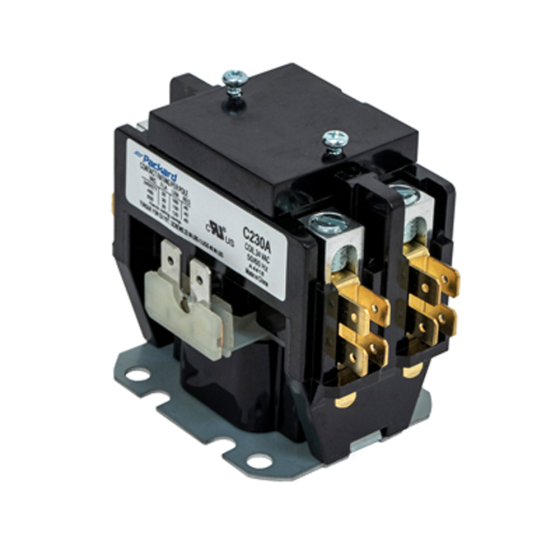

Packard Contactor 2 Pole, 24V Coil, 30FLA, 40RA, Lug Terminals
Item
C230A
FEATURES & BENEFITS
• 2 Pole.• FLA: 30.
• Resistive Amps: 40.
• Coil Voltage: 24Vac.
• 180LRA @ 240Vac, 150LRA @ 480Vac, 120LRA @ 600Vac.
• 4 Quick Connect Terminals Per Lug.
• Box lug terminals.
• Insulation: Class B.
• Versatile Foot Mount.
• In accordance with U.L. Bulletin No. 508 "Industrial Control Equipment", contactors meet specifications for devices up to 600 VAC.
| Electrical | |
|---|---|
| FLA | 30 | Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 24Vac | Poles | 2 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 0.500000 |
