FEATURES & BENEFITS

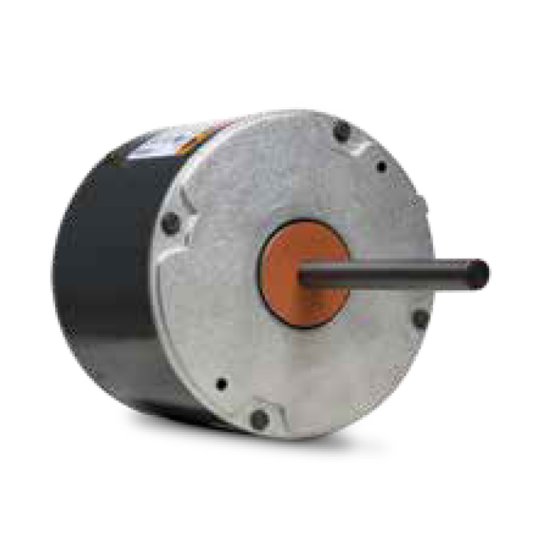

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208/230Vac
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 825
• NEMA Frame Size: 48
• Phase: Single
• FLA: 2.4
• Mount: Thru Bolt
• Bearing: Ball
• Shaft Length Inches: 6
• Shaft Dia Inches: 1/2
• Ambient Deg C: 70
• Ins. Class: Class F
• Capacitor Rating: 7.5/370
• 5.6” Diameter
• Extended Studs
• 48” Leads
• Automatic Reset Thermal Overload Protector
• Continuous Duty
Specification |
Ambient Temperature |
70 °C |
Motor HP |
1/3 |
Motor Type |
PSC |
Number of Speeds |
1 |
RPM |
825 |
Electrical |
Voltage |
208/230 |
Safety Standards |
California Prop 65 |
Yes |
Weights and Dimensions |
Operating Weight (lbs) |
14.45 |
Exterior Dimensions (D) (inches) |
6.600000 |
Exterior Dimensions (W) (inches) |
6.800000 |
Exterior Dimensions (H) (inches) |
14.400000 |
Shipping Weight (lbs) |
14.450000 |
