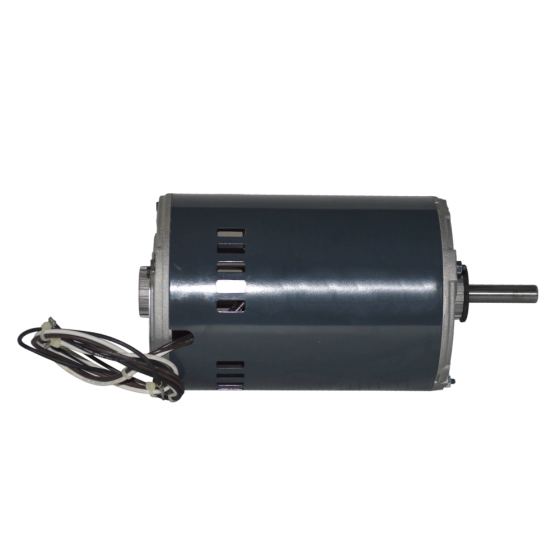

Condenser Fan Motor 1/2HP, 825RPM, 208/230Vac, 3.4A
Item
HC44ML208
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1/2
• RPM: 825
• Voltage: 208/230Vac
• Amperage: 3.4
• 1 Phase
• Hz: 60
• NEMA Frame Size: 56Z
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• 50DA660015
• HC44ME232
• HC44ME233
• HC44MK232
• HC44VL700
| Specification | |
|---|---|
| Motor Frame | 56Z | Motor HP | 1/2 | RPM | 825 |
| Electrical | |
|---|---|
| Amps | 3.4 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 33 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 33.000000 |
