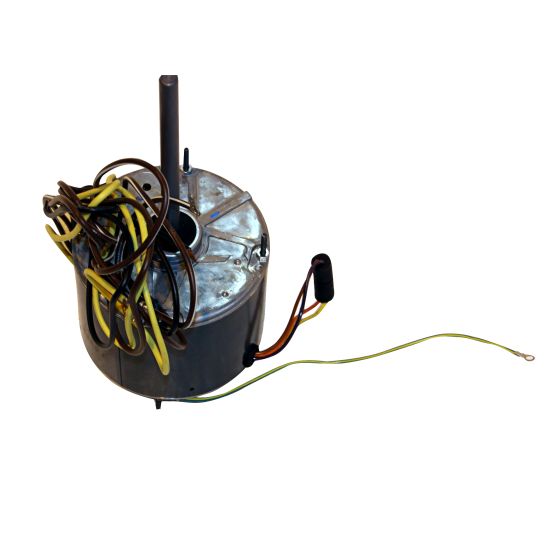

Totaline® Condenser Fan Motor 1/4 HP, 1075 RPM, 460Vac, 0.8A, 7.5µF/370Vac, 1 Speed, 60 °C (PSC)

Item

P257-3736HS

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: 1075
• Voltage: 460
• Amperage: 0.8
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Ambient Temperature: 70 °C

Specifications

Specification
Ambient Temperature	70 °C
Motor HP	1/4
Motor Type	PSC
Number of Speeds	1
RPM	1075

Electrical
Amps	0.8
Voltage	460

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	11.9
Exterior Dimensions (D) (inches)	5.700000
Exterior Dimensions (W) (inches)	5.900000
Exterior Dimensions (H) (inches)	12.500000
Shipping Weight (lbs)	11.900000

Warranty
Country of Origin	Mexico
