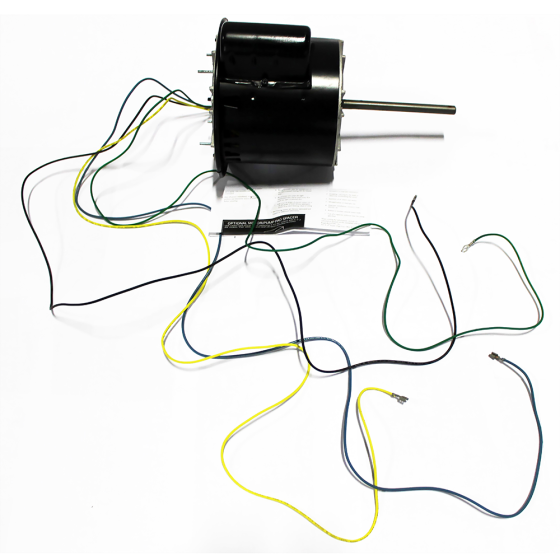

Condenser Fan Motor 3/4HP, 1140RPM, 208/230/460Vac, 3.2/1.6A
Item
HD46AK651
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 3/4
• RPM: 1140
• Rotation: Reversible
• Voltage: 208/230/460Vac
• Amperage: 3.2/1.6
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 56Y
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 56Y | Motor HP | 3/4 | RPM | 1140 |
| Electrical | |
|---|---|
| Amps | 1.6 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 43 | Exterior Dimensions (D) (inches) | 9.000000 | Exterior Dimensions (W) (inches) | 9.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 43.000000 |
