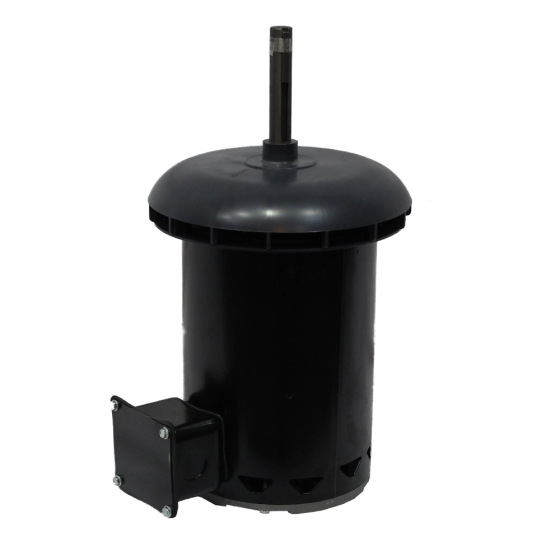

Condenser Fan Motor 3/4HP, 1075RPM, 208/230Vac, 4.5A, 20µF/440Vac, (PSC)
Item
HC46VL221
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1075
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 4.5
• Capacitor: 20µF/440Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 5/8 x 4.00
SUPERSEDES FROM
• 38AB660022
• 38AB660013
• HC46VL210
• HC46VZ201
• HC46VL211
• HC46VL220
• HC46VL600
• HC46VL700
• HC46VZ200
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 3/4 | Motor Type | PSC | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 5/8 |
| Electrical | |
|---|---|
| Amps | 4.5 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 27 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 27.000000 |
