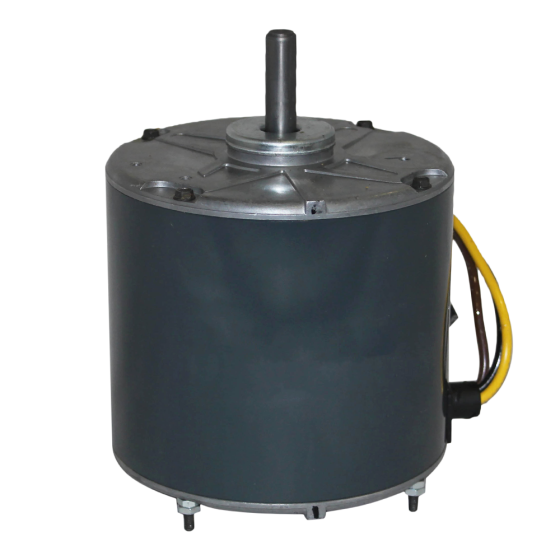

Condenser Fan Motor 1/3HP, 1110RPM, 575Vac, 5µF/370Vac, (PSC)
Item
HC41GE575
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1110
• Rotation: Clockwise
• Voltage:
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Shaft Size: 0.50 x 1.50
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/3 | Motor Type | PSC | Rotation | CW | RPM | 1110 | Shaft Diameter | 0.50 | Shaft Length | 1.50 |
Electrical | |
---|---|
Hertz | 60 | Voltage | 575 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 15 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 15.000000 |
