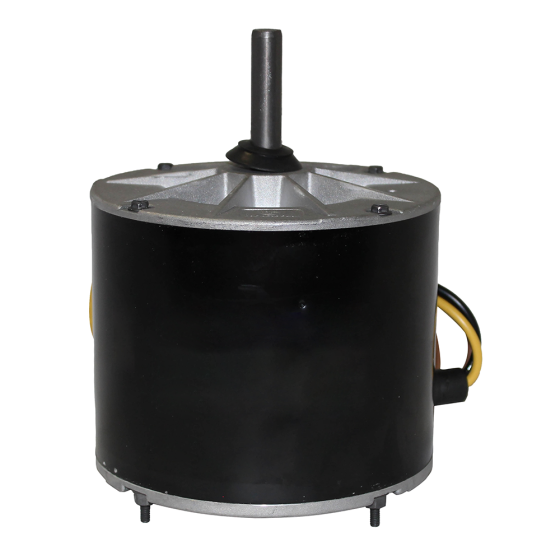

Condenser Fan Motor 1/4HP, 1100RPM, 460Vac, 7.5µF/370Vac, (PSC)
Item
HC40GQ460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1100
• Rotation: Clockwise
• Voltage: 460Vac
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Shaft Size: 0.50 x 2.5
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/4 | Motor Type | PSC | Rotation | CW | RPM | 1100 | Shaft Diameter | 0.50 | Shaft Length | 2.5 |
| Electrical | |
|---|---|
| Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 24 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 25.000000 |
