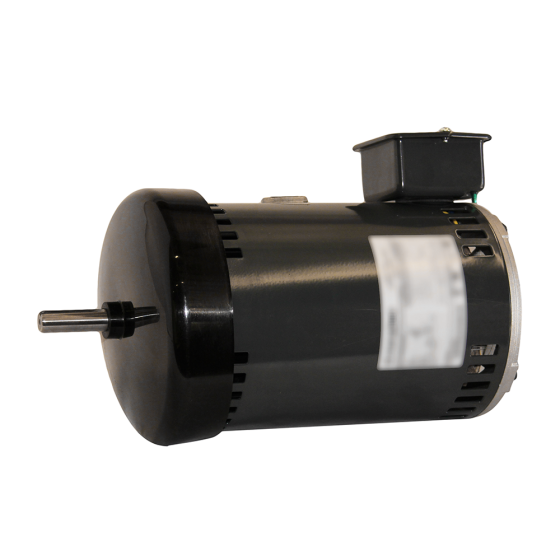

Condenser Fan Motor 1HP, 1075RPM, 460Vac, 3.6A, 12.5µF/440Vac, 1 Speed, (PSC)
Item
HC52AE465
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1075
• Number of Speeds: 1
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 460Vac
• Amperage: 3.6
• Capacitor: 12.5µF/440Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 56Z
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 5/8 x 4.00
SUPERSEDES FROM
• HC52AE460
• HC52TE460
• HC52VE460
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 56Z | Motor HP | 1 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 5/8 |
| Electrical | |
|---|---|
| Amps | 3.6 | Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 42 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 42.000000 |
