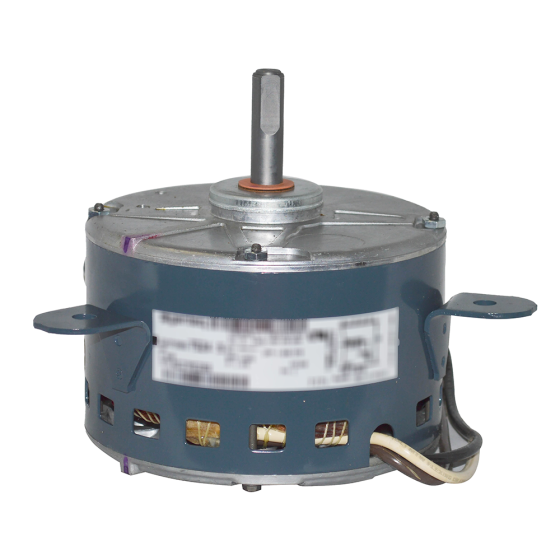

Condenser Fan Motor 1/5HP, 1625RPM, 208/230Vac, 1.45A, 4µF/370Vac, 1 Speed, (PSC)
Item
HC37ME268
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/5
• RPM: 1625
• Number of Speeds: 1
• Rotation: Counter-Clockwise
• Voltage: 208/230Vac
• Amperage: 1.45
• Capacitor: 4µF/370Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: A
SUPERSEDES FROM
• 38GC660004
• HC39MA230
| Specification | |
|---|---|
| Motor HP | 1/5 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 1625 |
| Electrical | |
|---|---|
| Amps | 1.45 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 9.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 9.000000 |
