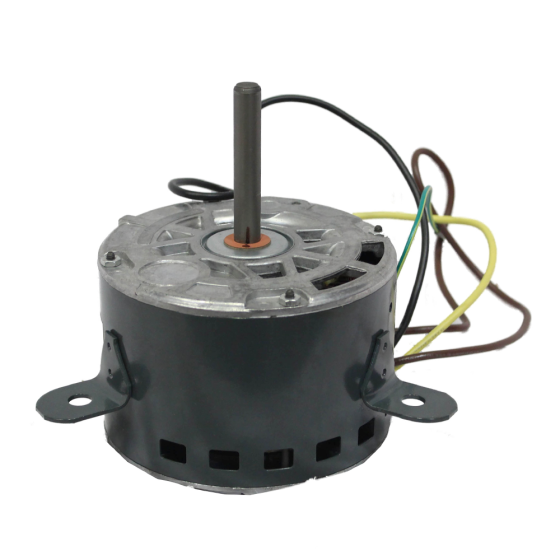

Condenser Fan Motor 1/4HP, 1075RPM, 208/230Vac, 1.60A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC680028
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Clockwise
• Voltage: 208/230Vac
• Amperage: 1.60
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: A
SUPERSEDES FROM
• 65510D1
• 66151D1
• 66152D1
• HC37SE231
• P251-6406
• P251-6408
Specification | |
---|---|
Motor HP | 1/4 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW | RPM | 1075 |
Electrical | |
---|---|
Amps | 1.6 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 12 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 12.000000 |
