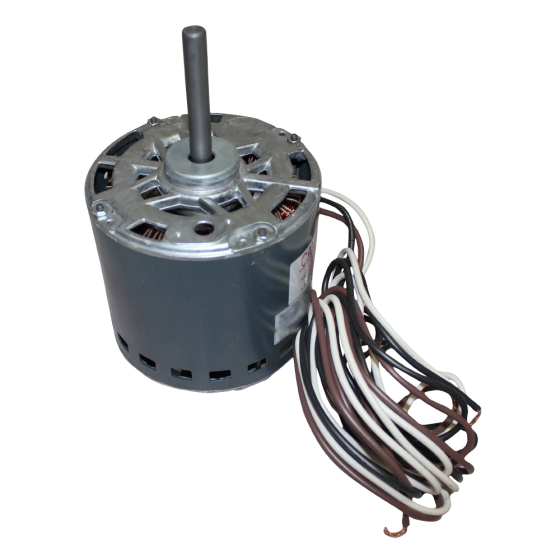

Condenser Fan Motor 1/2HP, 1075RPM, 208/230Vac, 3.50A, 10µF/370Vac, 1 Speed, (PSC)

Item
HC680016
  • California Prop 65

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 1
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 3.50
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: A
• Shaft Size: 0.50 x 2.50

SUPERSEDES FROM

• P251-5209

Specification
Bearing Type Sleeve
Motor Frame 48
Motor HP 1/2
Motor Type PSC
Number of Speeds 1
Rotation CCW LE
RPM 1075
Shaft Diameter 0.50
Shaft Length 2.50
Electrical
Amps 3.5
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 17
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 8.000000
Exterior Dimensions (H) (inches) 15.000000
Shipping Weight (lbs) 17.000000
