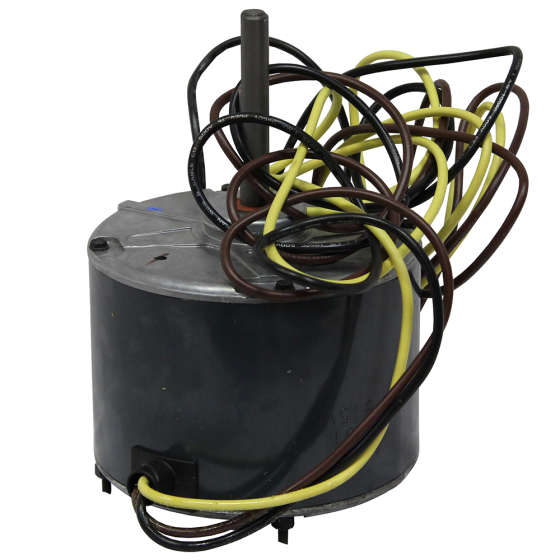

Condenser Fan Motor 1/10HP, 800RPM, 208/230Vac, 0.70A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC34GE238
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1/10 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW | RPM | 800 | Shaft Diameter | 0.50 | Shaft Length | 3.25 |
| Electrical | |
|---|---|
| Amps | 0.7 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 10.000000 |
