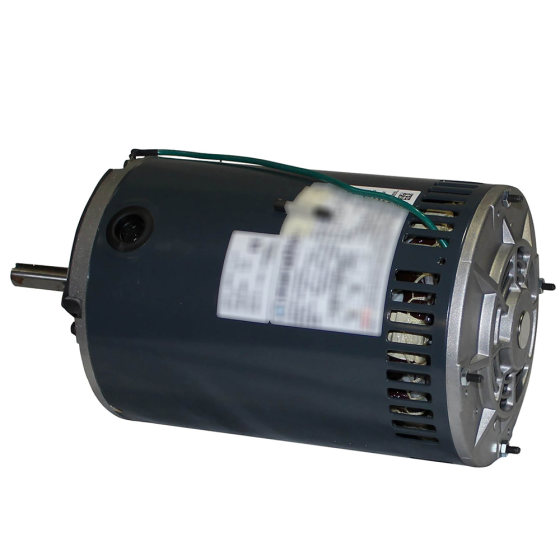

Condenser Fan Motor 1/1-1/2HP, 950/1140RPM, 208/230/460Vac, 3.2-6.4A
Item
110204000
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1/1-1/2
• RPM: 950/1140
• Voltage: 208/230/460Vac
• Amperage: 3.2-6.4
• Hz: 60
SUPERSEDES FROM
• 08216151
| Specification | |
|---|---|
| RPM | 1140 |
| Electrical | |
|---|---|
| Amps | 3.2 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 20.000000 |
