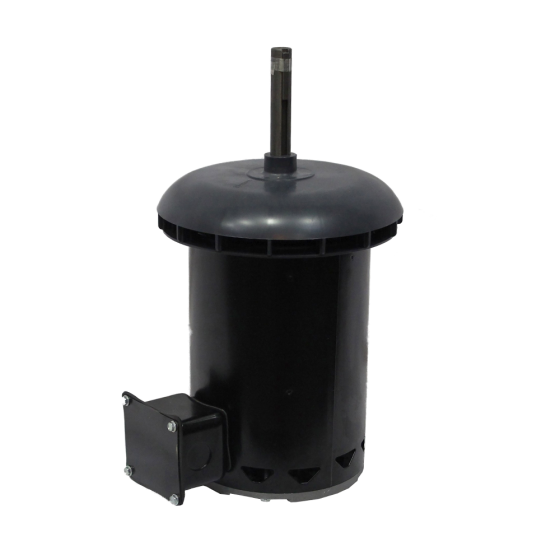

Condenser Fan Motor 3/4HP, 1140RPM, 208/230Vac
Item
HD46VL331
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 3/4
• RPM: 1140
• Rotation: Reversible
• Voltage: 208/230Vac
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48Z
• Open, Air Over (OAO) Enclosure
• Shaft Size: 0.625 x 5.00
SUPERSEDES FROM
• 38AB660023
• 38AB660014
• HD46VL200
• HD46VL201
• HD46VL202
• HD46VZ204
• HD46VZ210
• HD46VZ212
• HD46VL330
• HD46VZ331
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48Z | Motor HP | 3/4 | RPM | 1140 | Shaft Diameter | 0.625 |
| Electrical | |
|---|---|
| Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 33 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 33.000000 |
