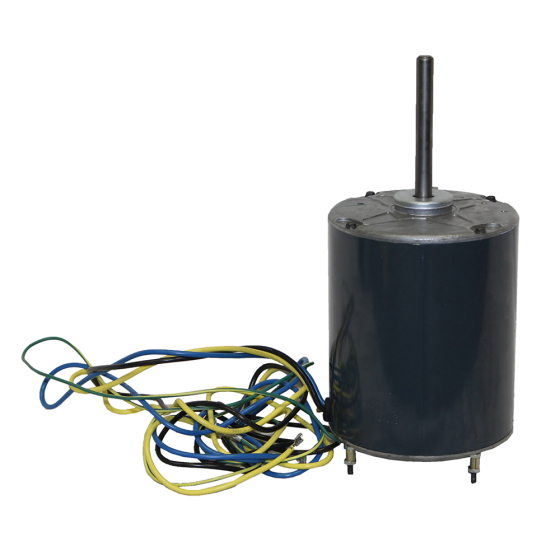

Condenser Fan Motor 1HP, 1115RPM, 208/230Vac, 3.30A
Item
HD46GK230
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1
• RPM: 1115
• Rotation: Counter-Clockwise
• Voltage: 208/230Vac
• Amperage: 3.30
• 3 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
| Specification | |
|---|---|
| Motor HP | 1 | Rotation | CCW | RPM | 1115 |
| Electrical | |
|---|---|
| Amps | 3.3 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 22.6194 | Exterior Dimensions (D) (inches) | 5.650000 | Exterior Dimensions (W) (inches) | 5.650000 | Exterior Dimensions (H) (inches) | 12.400000 | Shipping Weight (lbs) | 23.545000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
