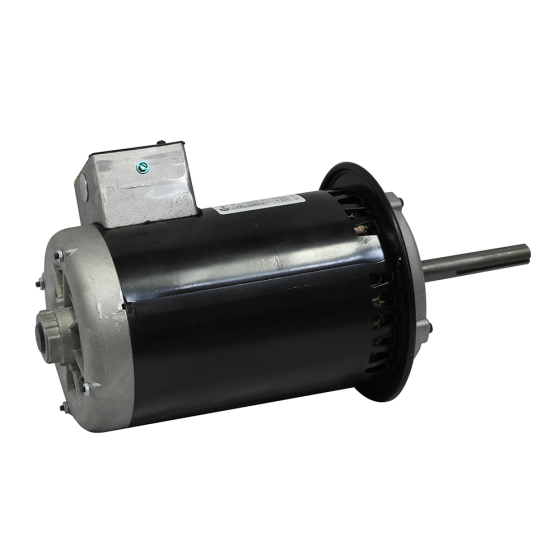

Condenser Fan Motor 1HP, 1140RPM, 208/230/460Vac, 8.4/4.2A
Item
HD56AK652
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor Frame | 56Z | Motor HP | 1 | RPM | 1140 |
| Electrical | |
|---|---|
| Amps | 4.2 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 48.65 | Exterior Dimensions (D) (inches) | 17.200000 | Exterior Dimensions (W) (inches) | 8.200000 | Exterior Dimensions (H) (inches) | 9.100000 | Shipping Weight (lbs) | 50.900000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
