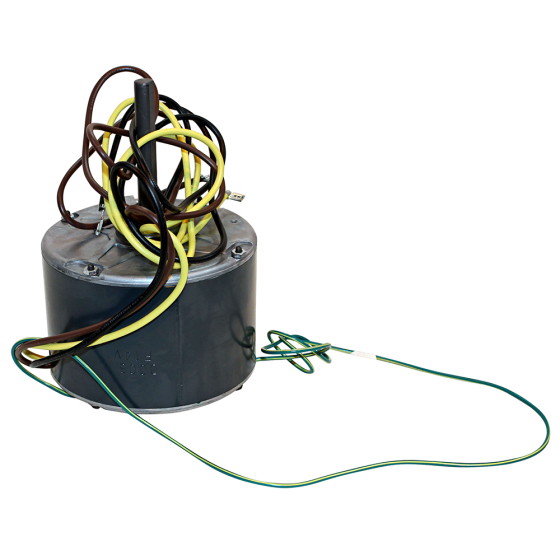

Condenser Fan Motor 1/8HP, 820RPM, 208/230Vac, 0.80A, 7.5µF/370Vac, 1 Speed, (PSC)
Item
HC33VE207
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/8 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW | RPM | 820 |
| Electrical | |
|---|---|
| Amps | 0.8 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.1413 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 5.800000 | Exterior Dimensions (H) (inches) | 7.900000 | Shipping Weight (lbs) | 11.200000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
