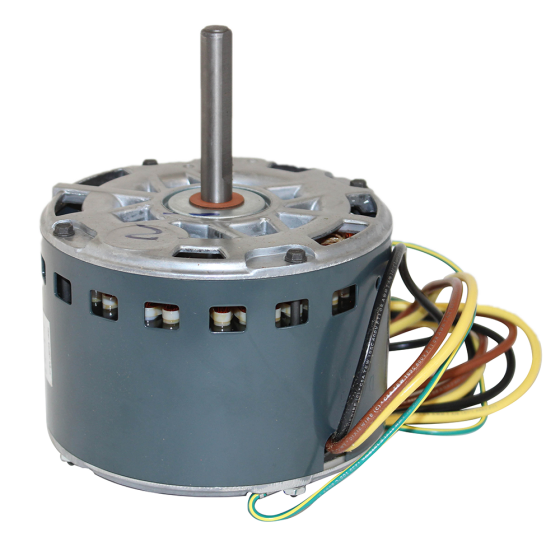

Condenser Fan Motor 1/8HP, 800RPM, 208/230Vac, 0.90A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC35SE229
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/8 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 800 |
| Electrical | |
|---|---|
| Amps | 0.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8.45 | Exterior Dimensions (D) (inches) | 14.300000 | Exterior Dimensions (W) (inches) | 6.400000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 8.450000 |
