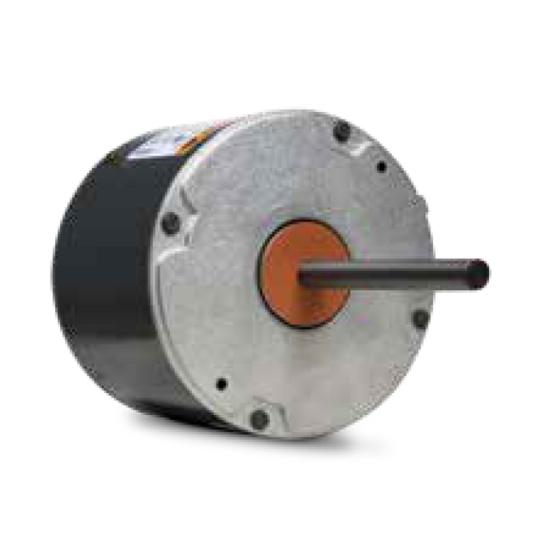

Totaline® Multi HP Condenser Fan Motor 1/5-1/3 HP, 1075 RPM, 208/230 Volts, 2.0 FLA, 7.5µF/370v Cap Rating, 1 Speed

Item
P257-3458HS
  • California Prop 65

PRODUCT DETAILS

Totaline High Temperature Condenser Fan Motors feature 70°C (158°F) Ambient Design. All angle mounting position for universal versatility.

FEATURES & BENEFITS

• Totally Enclosed Air Over TEAO.
• 70°C Ambient.
• Extended Studs, Drain Holes Both Ends.
• 48” Leads.
• Hubless Lead End.
• Reversible Rotation.
• Automatic Reset Thermal Overload Protector.
• Continuous Duty.
• Single Phase, 60 HZ.
• Class F Insulation.
• BALL Bearings.
• 48 NEMA Frame.

Specification
Ambient Temperature 70 °C
Bearing Type Ball Bearing
Cap Rating 7.5µF/370v
Motor Frame 48
Motor HP 1/5-1/3
Motor Type PSC
Number of Speeds 1
Rotation CW/CCW
RPM 1075
Shaft Diameter 1/2"
Shaft Length 6"
Electrical
FLA 2
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 15
Exterior Dimensions (D) (inches) 15.0000
Exterior Dimensions (W) (inches) 8.0000
Exterior Dimensions (H) (inches) 8.0000
Shipping Weight (lbs) 15.0000
