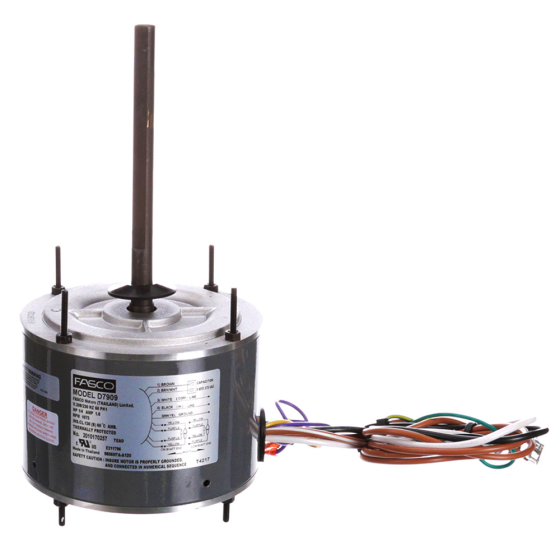

Fasco Condenser Fan Motor 1/4 HP, 1075 RPM, 208/230Vac, 1.8A, 5µF/370Vac. 1 Speed, 60°C (PSC)
FEATURES & BENEFITS
• Voltage: 208/230
• Hertz: 60
• Amps: 1.80
• Capacitor Required: 5MFD/370V
• H.P.: 1/4
• RPM: 1075
• Speeds: 1
• 60° C ambient
• Motor Rotation: Reversible
• Permanent split capacitor
• Totally enclosed
• Single phase
• 4 drilled and tapped holes in shelf for Rheem applications
• All angle mount bearings
• Bearings: Ball
• Enclosure: TEAO
• Length Less Shaft (In.): 4.00
• NEMA Frame: 48
• Overload Protection: Automatic
• Shaft Dimensions (In.) Dia x Lgth: 1/2 x 6-1/2
Specification |
Motor HP |
1/4 |
Motor Type |
PSC |
Number of Speeds |
1 |
RPM |
1075 |
Electrical |
Amps |
1.8 |
Hertz |
60 |
Voltage |
208/230 |
Safety Standards |
California Prop 65 |
Yes |
Weights and Dimensions |
Operating Weight (lbs) |
25 |
Exterior Dimensions (D) (inches) |
14.000000 |
Exterior Dimensions (W) (inches) |
8.000000 |
Exterior Dimensions (H) (inches) |
8.000000 |
Shipping Weight (lbs) |
25.000000 |
