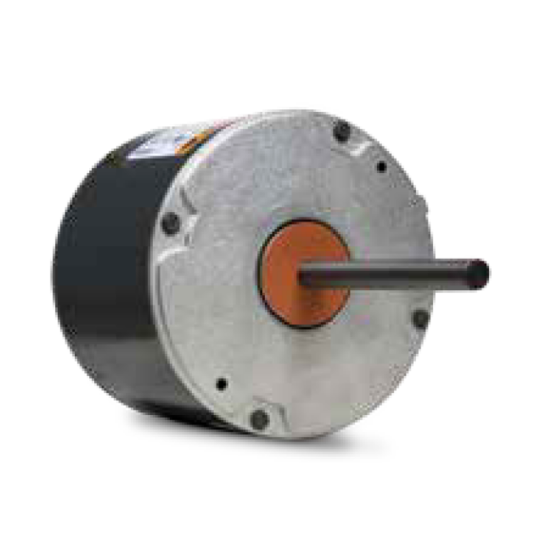

Totaline® Condenser Fan Motor 1/2 HP, 825 RPM, 208/230 Volts, 2.8 FLA, 10µF/370v Cap Rating, 1 Speed

Item
P2573206
  • California Prop 65

PRODUCT DETAILS

Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.

FEATURES & BENEFITS

• 5.6” Diameter, Totally Enclosed Air Over TEAO.
• 60°C (140°F) Ambient.
• Extended Studs.
• 30” Leads.
• Reversible Rotation.
• Automatic Reset Thermal Overload Protector.
• Continuous Duty.
• Single Phase, 60 HZ.
• Class B Insulation.
• BALL Bearings.
• 48 NEMA Frame.

Specification
Ambient Temperature 60 °C
Bearing Type Ball Bearing
Cap Rating 10µF/370v
Motor Frame 48
Motor HP 1/2
Motor Type PSC
Number of Speeds 1
Rotation CW/CCW
RPM 825
Shaft Diameter 1/2"
Shaft Length 6"
Electrical
FLA 2.8
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 16.0000
Exterior Dimensions (W) (inches) 8.0000
Exterior Dimensions (H) (inches) 8.0000
Shipping Weight (lbs) 20.0000
