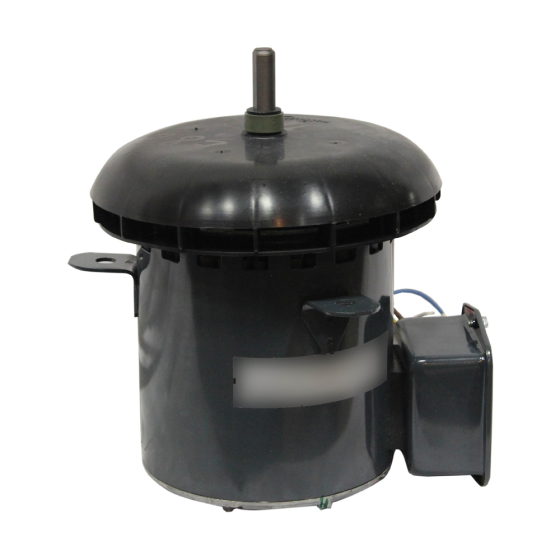

Condenser Fan Motor 1/2HP, 1075RPM, 208/230/460Vac, 4.60/2.30A, 7.5µF/440Vac, 1 Speed, (PSC)
Item
HC44VL852
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 1
• Rotation: Counter-Clockwise
• Voltage: 208/230/460Vac
• Amperage: 4.60/2.30
• Capacitor: 7.5µF/440Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 2.20
SUPERSEDES FROM
• HC43VE200
• HC43VE230
• HC43VE460
• HC43VL650
• HC44VL465
• HC44VL610
• HC44VL650
• P251-6210
• P251-8213
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 2.20 |
| Electrical | |
|---|---|
| Amps | 2.3 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 28.9 | Exterior Dimensions (D) (inches) | 8.900000 | Exterior Dimensions (W) (inches) | 7.900000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 31.100000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
