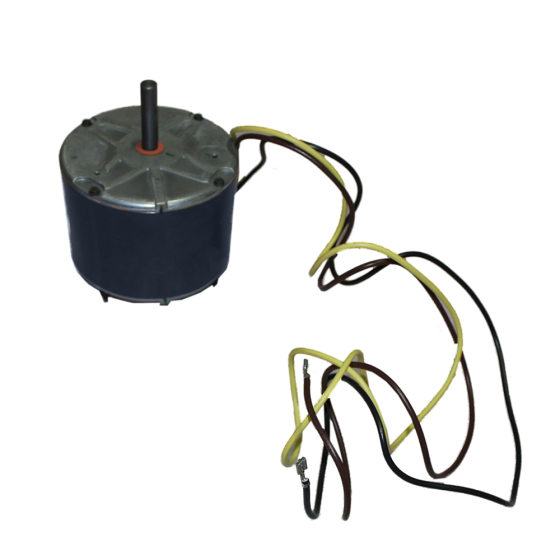

Condenser Fan Motor 1/10HP, 825RPM, 208/230Vac, 5µF/370Vac, (PSC)
Item
HC34GR234
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/10
• RPM: 825
• Rotation: Clockwise
• Voltage: 208/230Vac
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 39
• Shaft Size: 0.50 x 2.17
SUPERSEDES TO
• HC34GQ234
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1/10 | Motor Type | PSC | Rotation | CW | RPM | 825 | Shaft Diameter | 0.50 | Shaft Length | 2.17 |
Electrical | |
---|---|
Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 14.6 | Exterior Dimensions (D) (inches) | 6.900000 | Exterior Dimensions (W) (inches) | 9.850000 | Exterior Dimensions (H) (inches) | 7.100000 | Shipping Weight (lbs) | 14.600000 |
