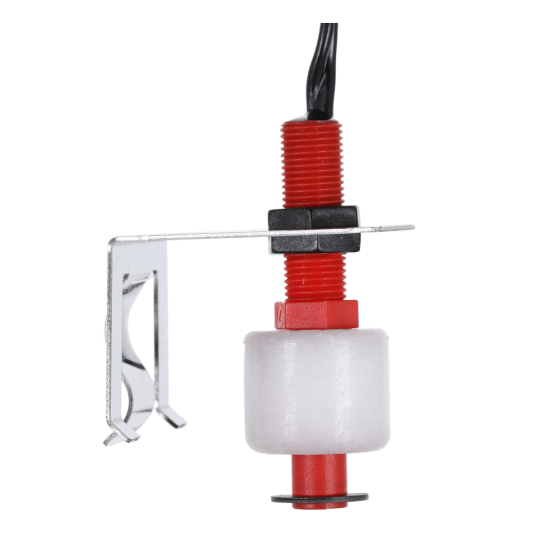

DiversiTech® Condensate Overflow Safety Switch 24Vac
Item
CS-3
APPLICATIONS
DiversiTech® Flood Prevention Switches are simple to install, easy to service, and extremely reliable. After clipping the CS-3 to the drain pan wall, the activation level can be easily adjusted by moving the nuts on the threaded shaft.
FEATURES & BENEFITS
• Small size for serviceability
• Constructed of materials that will not rust or stick
• Switch operates smoothly every time
• Comes with 6 feet of wire for easy installation
• Voltage: 24 volts
• Amperage: 1.5 amps
• Operates via a reed switch
• ETL Listed
• Conforms to UL 508
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.2 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.200000 |
