Removes condensate from ductless mini-split wall and ceiling mounted air conditioners and concealed fan coil equipment.
FEATURES & BENEFITS

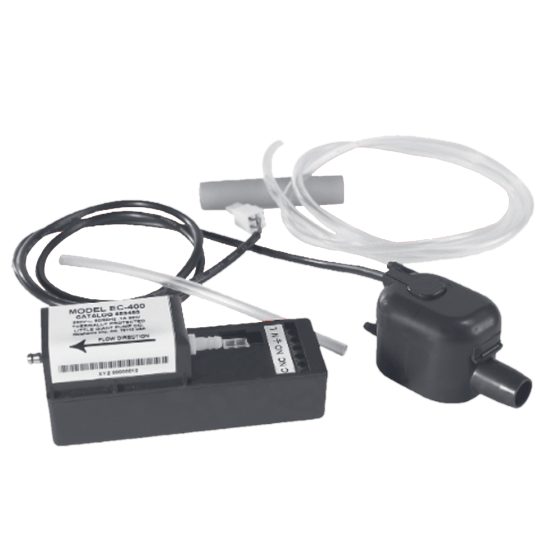

• Compact condensate drain pump for all types of ductless mini-split air conditioners and other types of cooling equipment such as fan coils: Wall Mount, Suspended Ceiling & Floor Mount. • Automatic pump operation controlled by a remote collection reservoir containing a 3-step float/magnet reed switch design for reliable on, off and safety overflow detection. • Can be connected to BMS systems having Normally Open (NO) or Normally Closed (NC) circuits. • Compact float collection reservoir: 3.3" x 1.5" x 1.4" • Capable of pumping water to a height of 29.5 ft • Designed to drain condensate from air conditioners up to 10kW or 34,000 BTU. • Compact, two-piece designed to fit in air conditioners with limited space. • Low maintenance • Includes removable/cleanable inlet filter to trap airborne particles. • Includes natural rubber inlet tube for connection to air conditioner condensate drain hose. • Includes 3.2" x 1.4" I.D. tubing for connection between reservoir and pump inlet. • Includes spring clamps for securing reservoir pump inlet tubing. • Pump unit can be placed inside false ceiling up to 1 m above water source (reservoir) or inside plastic line-set channel or behind wall mounted air handler. • Includes 5/32" x 1.4" I.D. tubing outlet adapter. • Discharge: 5/32" • Voltage: 230V • Hertz: 50/60 • Amps: 0.1 • Watts: 20 • Shutoff(ft): 35 • Suction Lift(ft): 3 • Max Flow(GPH): 2 @ 2ft
