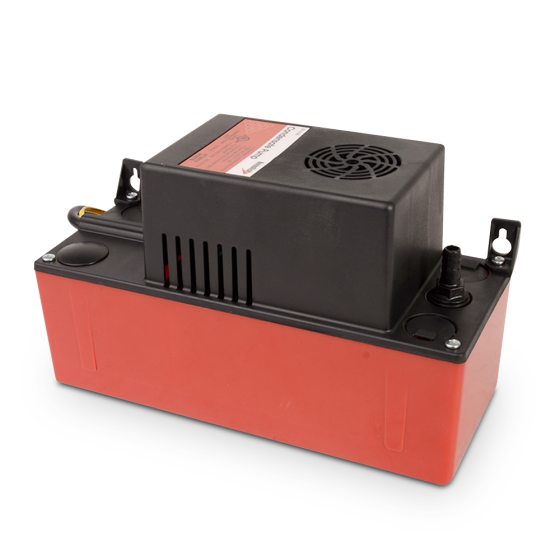

DiversiTech® Condensate Pump 1.2GPM, 120Vac

APPLICATIONS

The DiversiTech® Condensate Pump is a 120 volt economical alternative based on the proven CP-22 pump. It is designed to lift to a maximum of 16 feet and handles condensate up to 160° Fahrenheit. The CP-16 includes many of the great features of the CP-22, including hang tabs, four inlet holes, float switch, overflow switch, and a check valve.

FEATURES & BENEFITS

• Rated Voltage: 120 Volts / 60 Hz
• Rated Current Draw: 1.9 Amps
• Input Type: USA 3-prong plug
• Head Height: 16 ft­. maximum
• Flow Rate at Zero Head: 1.2 GPM
• Temperature Rating:
Continuous duty 140F°
Max inlet temperature 160° F
Not suitable for contact with steam or gasses that exceed 160F°
• Product Dimensions (LxWxH): 4.5” x 10.75“ x 6.5”
• Product Weight: 3.8 lbs.
• Inlet Height from Base: 3.5”
• Wiring Color References:
Black - Live/Hot
White - Neutral
Green – Ground (All installations must conform to NEC requirements)

INCLUDES

• Instruction Sheet
• Hang Tabs
• Plug Protector
• 4’ Remote Shutoff Leads
• Inlet Cover
