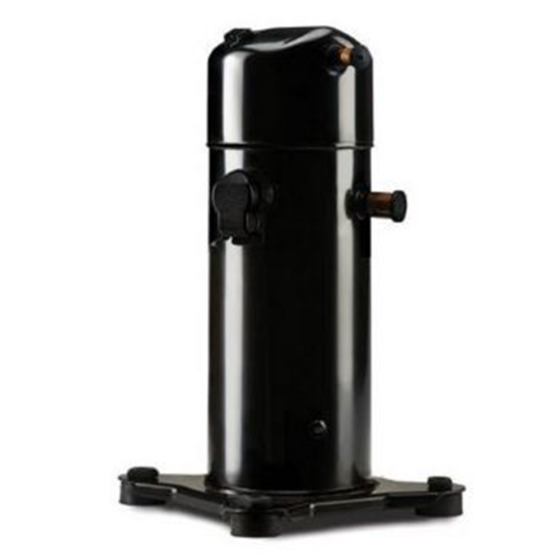

LG Hermetic Scroll Compressor R410A, 30,000BTU, 460Vac, Three Phase
Item
APG031WAZ
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 30,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 6
• LRA: 31
• RLA: 3.9
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.35"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.25"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 26 to 30kBTU |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 35 | Exterior Dimensions (D) (inches) | 22.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 35.000000 |
