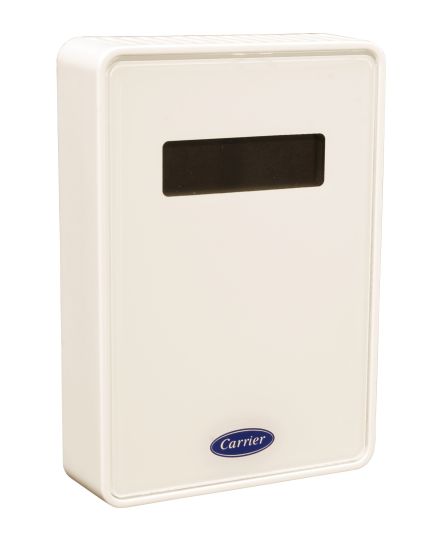

CO2/Temperature Sensor with LCD

The indoor air quality CO₂ sensor is designed to monitor carbon dioxide (CO₂) levels in the air and interface with the ventilation damper in an HVAC (Heating, Ventilation, and Air Conditioning) system. In addition, the sensor can be used solely for the purpose of monitoring and alarming.

The CO₂ sensor uses infrared technology to measure the levels of CO₂ in the air. These levels can be used as input to a Carrier controller to control the ventilation damper position and ensure an adequate level of outside air in the building.

Features:

• Sleek, low profile
• LCD display
• Mounting plate with terminal block for easy installation and wiring
• Compatible with US and European junction boxes
• CO₂ measurement range of 0 to 9999 ppm (default range of 0 to 2000 ppm)
• Versatile sensor options including optional temperature sensor, ABC Logic ™ self-calibration, 4 to 20 mA or 0 to 5/10 V output
• Solid, locking enclosure duct mounted for monitoring CO₂ levels in return airflow
• Quick, easy installation
• Lightweight and durable
• External mounting provides ease of sensor operation and maintenance
• LCD allows for sensor verification at a glance
