i-Vu® Building Automation System i-Vu 8.0 Pro (750 Controllers Maximum)

  • California Prop 65

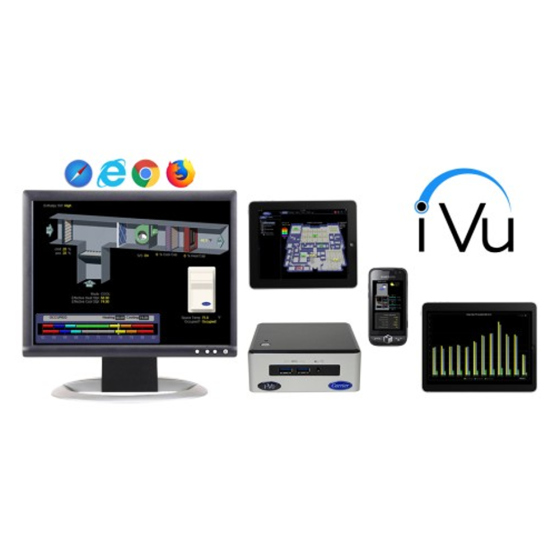

i-Vu® 7.0 Building Automation System Web-based operator interface

The i-Vu® Building Automation System provides everything you need to access, manage, and control your building, including the powerful i-Vu user interface, plug-and-play BACnet controllers, and state-of-the-art Carrier equipment.

i-Vu® Pro Features

  • Manage the HVAC equipment in your building from anywhere in the world using a standard web browser.
  • View and control the equipment in your building with a variety of PCs, tablets, and mobile devices.
  • Graphically configure and view schedules, setpoints, trends, alarms, and reports.
  • Integrate, monitor, and control other building systems such as lighting and meters using standard protocols.
 i-Vu® Standardi-Vu® Plusi-Vu® Pro
IncludesWeb Server & i-Vu SoftwareWeb Server & i-Vu Softwarei-Vu Software only
Networks supportedBACnet & CCNBACnet & CCNBACnet & CCN
Routing devices supportedUSB-CCN Adapter
USB-MS/TP Adapter
Open/XT/CCN Routers
USB-CCN Adapter
USB-MS/TP Adapter
Open/XT/CCN Routers
Open/XT/CCN Links
Open/XT/CCN Routers
Open/XT/CCN Links
Total controllers supported1750750Unlimited, 750, 32 or 5
Trend storage7 days62 daysUnlimited2
Alarm storage500500Unlimited2
Audit log storage30 days30 daysUnlimited2
Custom equipment & trend reportsNoYesYes
Custom reports with report managerNoView onlyCreate/edit/view3
Tenant Billing override reportsNoYesYes
Supports i-Vu Add-onsNoYesYes
Web services (XML/SOAP) data accessNoYesYes
BACnet/Modbus®/LonWorks® integrationNoYesYes
Location dependent accessNoNoYes

1A Router or Link is required for every 60 Open controllers or 140 CCN controllers.

2Trends, Alarms, and Audit Log storage capacity is dependent on the database management system that is being used.

3Custom Reports Create/Edit available in Pro 750 and Pro Unlimited

i-Vu Pro Server Requirements
(server sold separately)
Dual core processor, 4G RAM, 30GB hard drive, 10Mbps or higher LAN communications
Operating Systems Supported
Windows 10, 8.1 & 7 Professional, Windows 7 Ultimate, Windows 8.1 Enterprise
Windows Server 2016, Windows Server 2012 R2
Windows Vista Business or Ultimate SP2
Database Management Systems Supported
(sold separately except for Apache Derby)
Apache Derby (default database; included with i-Vu Pro software)
MySQL 5.7.2
64 Bit MS SQL Server® 2016 Express R1 & 2014 Express R22
64 Bit MS SQL Server 2016 SP1, 2014 SP2, 2012 R2
PostgreSQL 9.4 and 10
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 6.000000
Exterior Dimensions (W) (inches) 3.000000
Exterior Dimensions (H) (inches) 6.000000
Shipping Weight (lbs) 5.000000
Hazardous Material No
