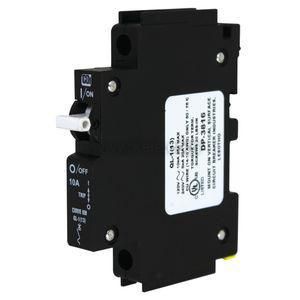

Miniature Circuit Breaker, 10 Amp, 1 Pole, 13mm, Dual Mount, Medium Delay

FEATURES

The QL Series circuit breakers provide excellent protection against overloads and short circuits for electrical circuits and small-sized electrical equipment. Reliable and economical, these circuit breakers are popular for HVAC applications and for building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using the experienced panel technicians at Kele's Custom Panel Shop. They will assemble the panels according to specifications and drawings.

• AC Circuit Breaker
• Hydraulic-Magnetic Technology
• 100% Rating Capability Independent of Ambient Temperature
• CSA, VDE, CE and CCC approved
• UL Listed (UL 489)
• Optional Auxiliary / Trip Alarm Switch
• Wide Range of Time Delays and Operating Currents
• Precision tripping
• Current Limiting Capabilities
• Ultra Compact – 13mm width Module
• Trip Indication with Mid-Trip Handle
• Reset Immediately After Overload
• DIN and Dual Rail Mounting

APPLICATIONS

• UPS Equipment
• Mobile Power-Generation Equipment
• Power Conditioning Equipment
• Alternative Energy Equipment
• Lighting Control
• AC Branch Circuit Installations

SPECIFICATIONS

• Rated Voltage: 120/240 VAC, 50/60 Hz
• Operating Temperature: -40° to 140°F (-40° to 60°)
• Protection Method: Hydraulic magnetic technology
• Number of Poles: 1

Interrupting Capacity @ Operating Voltage
• 10kA @ 120VAC (1-pole)
• 5kA @ 240VAC

• Current Ratings: 10A
• Mounting Options: DIN Rail
• Tripping Curves: 1, 9, KM
• Dimensions: 3.8"H x 0.51"W x 2.7"D (9.7 x 1.3 x 6.8 cm)
• Weight: 0.22 lb (0.1 Kg)
• Approvals: UL File #E192487, CSA, CE, VDE
• Warranty: 1 year
