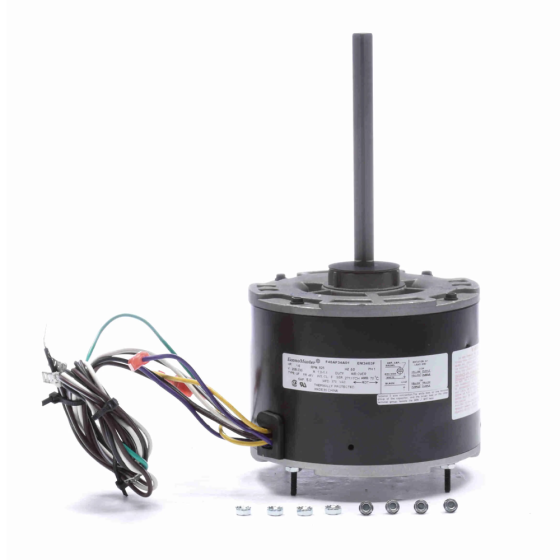

Century® Pro-E Series® Condenser Fan Motor 1/6HP, 825RPM, 208/230Vac, 1.1A, 5µF/370Vac, 1 Speed, 70°C

FEATURES

• Pro-E Series® - Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class F Insulation, 70°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 36" Leads
• Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

SPECIFICATIONS

• Phase: 1
• Output HP: 1/6 Hp
• Output KW: 0.13 kW
• Voltage: 208-230 V
• Speed: 825 rpm
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.0-1.1 A
• Duty: Air Over
• Insulation Class: F
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 10.71 in
• Frame Length: 4.19 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
