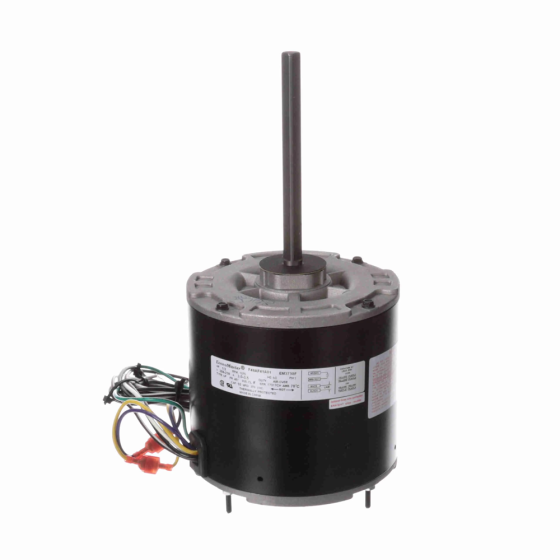

Century® Pro-E Series® Condenser Fan Motor 1/2HP, 1075RPM, 208/230Vac, 3.5A, 10µF/370Vac, 1 Speed, 70°C

FEATURES

• Pro-E Series® - Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class F Insulation, 70°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 36" Leads
• Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

SPECIFICATIONS

• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Frame: 48Y
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 3.0-3.5 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.67 in
• Frame Length: 4.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
