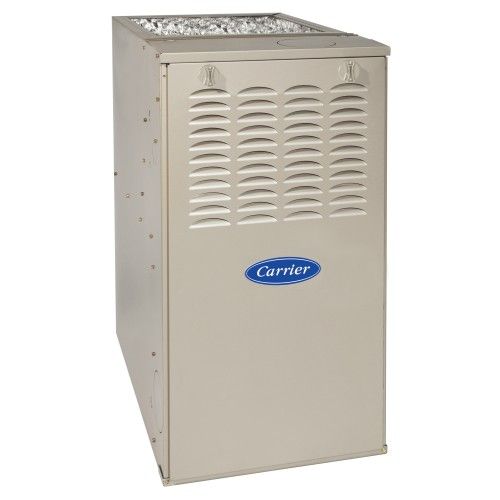

Carrier Performance™ Multipoise Furnace, 80% AFUE, Two-Stage, Variable Speed, 115/1

Grouped product items
Product Name
Carrier Performance™ Multipoise Furnace, 80% AFUE, 90,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B090V2120
Carrier Performance™ Multipoise Furnace, 80% AFUE, 135,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B135V2422
Carrier Performance™ Multipoise Furnace, 80% AFUE, 45,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B045V1412
Carrier Performance™ Multipoise Furnace, 80% AFUE, 90,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B090V1716
Carrier Performance™ Multipoise Furnace, 80% AFUE, 110,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B110V2122
Carrier Performance™ Multipoise Furnace, 80% AFUE, 70,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B070V1412
Carrier Performance™ Multipoise Furnace, 80% AFUE, 70,000 BTU, Two-Stage, Variable Speed, 115/1 MFR: Item: 58TP0B070V1716

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The 58TP0/58TP1 Two-Stage, Variable 25-speed, 4-way Multipoise Gas Furnaces offer unmatched comfort in their class with ComfortHeat® technology in an 80% AFUE gas furnace. You get the benefits of a ComfortHeat® technology furnace: reduced drafts, reduced sound levels, longer cycles, less temperature swings between cycles, and less temperature differences between rooms. Its exclusive, intelligent microprocessor control adapts to the heating needs of the home by automatically adjusting high and low heat times to maximize comfort. The 58TP0/58TP1 furnaces are approved for use with natural or propane gas. 58TP1 - Low NOx units are designed for California installations and can be installed in air quality management districts with a 40 ng/J NOx emissions limit.

PERFORMANCE
• ComfortHeat® Technology Intelligent microprocessor control
• Two-stage heating with single-stage thermostat with patented Adaptive Control Technology
• Lower operating sound through low-stage operation and QuieTech™ system
• Microprocessor based control center
• Enhanced diagnostics with easy to read 3 digit display for faults and status and reflective sight glass.
• Adjustable heating air temperature rise
• Adjustable cooling airflow
• Stores fault codes during power outages
• Power Heat™ Igniter
• Draft Safeguard switch designed to ensure proper furnace venting
• Insulated blower compartment
• Inner door for tighter sealing
• Variable 25-speed, constant torque ECM blower motor Increased SEER ratings for AC and HP systems as compared to the Air Conditioning Heating and Refrigeration Institute’s standard coil-only rating when paired with selected Carrier evaporator coils.
• Noise reduction combustion system
INSTALLATION FLEXIBILITY
• Four-position furnace: Upflow, Horizontal Right, Horizontal Left, Downflow, 13 different vent options
• On-board NFC antenna makes setup a tap away when using the Carrier service technician app
• 4-way Multipoise furnace, 13 vent applications
• Compact design - only 33-1/3 in. (847 mm) tall
APPLICATIONS
• SmartEvap™ Humidity control when using a Thermidistat™ control
• SmartEvap™ can lower the humidity level in the home by nearly 10 percent
• Comfort Fan™ adjustable constant fan speed from a compatible thermostat
• All models are Chimney friendly when used with accessory vent kit
• Twinning capable with accessory kit (sizes 070V17--16, 090V17--16, 090V21--20, 110V21--22, and 135V24--22)
• HYBRID HEAT® Dual Fuel System compatible
CERTIFICATION
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
• Residential installations eligible for consumer financing through the Retail Credit Program
LIMITED WARRANTY*
• Default 5-year parts limited warranty
• 20-year heat exchanger limited warranty 10-year parts limited warranty with timely registration* - Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner, some limitations may apply. For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage of other applications.
