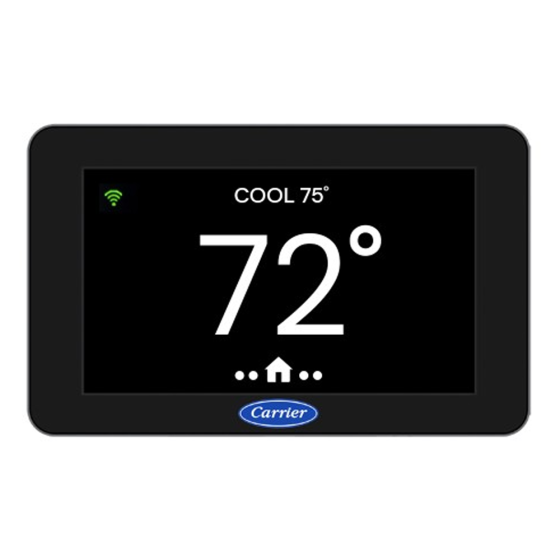

Carrier’s Connect™ BACnet thermostat offers control of your building’s heating, ventilating and air-conditioning (HVAC) system via Wi-Fi® to Connect’s Smartphone mobile App as well as from any BACnet-compliant building management system (BMS), including Carrier’s i-Vu® building automation system.
FEATURES
Hardware Features
• Color Capacitive Touchscreen: 4.3” vibrant full-color LCD swipe and scroll screen that’s easy to navigate and view from any angle
• BACnet: MS/TP port for easy integration with i-Vu system or any BACnet-compliant BMS
• Sensors: Onboard Temperature and Humidity
• Direct Wi-Fi® Access: Easily connect to your building’s network
• Slim Profile: Blends easily into any building’s decor and environmental surroundings
Application & System Features
• Display: Celsius or Fahrenheit
• Applications: Supports up to 4 heating and 3 cooling stages with various new or existing HVAC equipment with 24 VAC control
• 7-Day Scheduling: Precisely adjust optimum comfort setpoints to achieve energy savings
• Demand Response Ready: For participation in local demand response programs
• Over-the-Air Software Updates: Directly sent over Wi-Fi network without having to manually check for updates
• Control: Make basic temperature, comfort and efficiency adjustments easily and quickly
• Alerts: Notification through SMS text and eMail of any critical issues
• Embedded Contractor Info: Lets you know who to contact for service
• Local Access Security: Provides selective access for authorized individuals
• Smartphone App and Web Portal: Configure using your internet-connected Smartphone, PC or Tablet from anywhere or anytime… in real time
SPECIFICATIONS
Power Requirements
• R,C
• 24 Vac 50/60 Hz @ 6VA
Communication
• A+, B
• BACnet: MS/TP with baud rates up to 76.8 kbps, detected and set automatically. Max 127 devices.
• Wi-Fi®: 802.11 a/b/g/n
Real-Time Clock
• Real-time clock keeps track of time in the event of a power failure for up to 7 days.
Display
• Color Capacitive Backlit Touchscreen, °F or °C Selectable
Input
• S1-S2
• Remote Temperature Sensor 10K Type II. Software selectable for:
• Remote Temperature (33ZCT55SPT)
• Outside Air Temperature (33ZCSENOAT)
• Duct Temperature (33ZCSENSAT)
Outputs
• G,W1,W2,Y1,Y2,Y3,O
• Minimum Load = 1000 ohms
• Maximum Load = 1.25 A, 50% power factor
Environmental Operating Range
• 32° to 104°F (0° to 40°C), 10 to 95% relative humidity, non-condensing
Compliance
• FCC Part 15, Subpart J compliant, Title 24 compliant, IECC 2015 compliant
Physical
• Dimensions: (H x W x D): 3.23 in. (82mm) x 5.13 in. (130mm) x .94 in. (24mm)
